What is Piezoelectricity, flyback Xformer & Solenoid Valve?

What is Piezoelectricity?

Piezoelectricity is the property of certain crystalline materials (like quartz, certain ceramics, and even bone) to generate an electrical charge in response to applied mechanical stress (like pressure, squeezing, or stretching).

The term comes from the Greek word piezein, meaning “to squeeze or press.”

This phenomenon is reversible, meaning the same materials will undergo a slight mechanical deformation (change shape) when subjected to an electric field.

How Piezoelectricity Works

The piezoelectric effect or Piezoelectricity is categorized into two complementary phenomena:

1. The Direct Piezoelectric Effect (Mechanical to Electrical)

This is the generation of voltage when mechanical stress is applied.

• Internal Structure: Piezoelectric materials have a specific crystalline structure that lacks a center of symmetry. This structural asymmetry means that the positive and negative electrical charges within the crystal’s unit cells are not perfectly balanced in their rest state, leading to tiny, aligned electric dipoles (separated positive and negative charges).
• Applying Stress: When a mechanical force (like compression or tension) is applied, the crystal lattice deforms. This deformation causes the relative position of the internal positive and negative ions to shift.
• Charge Generation: This shift unbalances the electric dipoles, causing a net separation of positive and negative charges on opposite faces of the crystal. This charge separation creates a measurable voltage across the material, effectively converting mechanical energy into electrical energy.

2. The Converse (or Inverse) Piezoelectric Effect (Electrical to Mechanical)

This is the change in shape when an electric field is applied.

• Applying Voltage: When an external electric field (voltage) is applied across the crystal faces, the internal positive and negative charges are attracted to or repelled by the external field.
• Deformation: This movement of charges causes the entire crystal structure to expand or contract (change shape) very slightly but precisely. This converts electrical energy into mechanical energy, and it’s the basis for devices like buzzers and high-precision actuators.

Who Discovered Piezoelectricity?

The direct piezoelectric effect or Piezoelectricity was discovered in 1880 by French physicists, the brothers Jacques and Pierre Curie.

They demonstrated that pressure applied to crystals like quartz, tourmaline, and Rochelle salt produced an electric charge. The converse piezoelectric effect or Piezoelectricity was mathematically predicted by Gabriel Lippmann in 1881 and then experimentally confirmed by the Curie brothers shortly after.

Would you like to know some common applications of piezoelectricity, like in lighters, sensors, or ultrasound machines?

Advantages

1. Self-Generating: Piezoelectric sensors do not require an external power source to operate (for the direct effect), as they generate voltage from applied mechanical stress.
2. High Sensitivity & Precision: They can detect and measure extremely small changes in force, acceleration, or pressure, offering high resolution and nanometer-level control in actuation.
3. Fast Response Time: They have an almost instantaneous response, making them ideal for measuring high-frequency vibrations and dynamic events.
4. Compact and Simple: Piezoelectric devices are small, lightweight and have a solid-state structure with no major moving parts, leading to robustness and long life.
5. Wide Operational Range: Certain materials can function effectively in extreme conditions, such as very low (cryogenic) temperatures or in environments with strong magnetic fields.
6. High Voltage Generation (for Igniters): The ability to generate a high, momentary voltage from a sharp impact is useful for applications like gas lighters.

Disadvantages

1. Low Power Output: While they produce high voltage, the amount of current and overall power generated is very small, making them unsuitable for large-scale power generation.
2. Cannot Measure Static Conditions (Charge Leakage): The electrical charge generated by constant stress tends to dissipate or “leak” over time, meaning they are best suited for measuring dynamic (changing) events rather than steady, static pressure.
3. Temperature and Humidity Sensitivity: The performance and properties of piezoelectric materials, particularly their sensitivity, can be significantly affected by changes in temperature and high humidity.
4. Hysteresis and Creep: In actuator applications, the material’s deformation doesn’t perfectly match the applied voltage (hysteresis), and its shape can slowly drift over time (creep), which can compromise long-term accuracy.
5. Material Fragility: Many high-performance piezoelectric ceramics (like PZT) are brittle and can be easily damaged by strong impact or excessive mechanical bending.
6. Toxicity Concerns: Many traditional, high-performing piezoelectric materials (like PZT) contain lead, posing environmental and health challenges for disposal and manufacturing.

Applications of Piezoelectricity

Applications Utilizing the Direct Effect (Mechanical to Electrical)

These devices use pressure, force, or vibration to generate an electrical signal or spark.

1. Sensors:
   • Accelerometers/Vibration Sensors: Used to monitor mechanical equipment (motors, pumps, etc.) for predictive maintenance by detecting faults through vibrational patterns. Also used in vehicle safety (e.g., airbag deployment).
   • Pressure Sensors: Measures dynamic (changing) pressure in engines, medical devices, and industrial hydraulic systems.
   • Microphones: Convert sound waves (mechanical vibrations) into an electrical audio signal.
2. Igniters:
   • Gas Lighters/Stoves: A rapid mechanical strike on the crystal generates a high-voltage spark to ignite gas.
3. Energy Harvesting:
   • Vibration Harvesters: Convert ambient vibrations (from roads, machinery, or human movement) into small amounts of electrical power to run low-power sensors or IoT devices.
4. Acoustic Pickups:
   • Musical Instruments: Used in acoustic guitars and other instruments to convert the vibrations of the strings and bridge into an electrical signal for amplification.

Applications Utilizing the Converse Effect (Electrical to Mechanical)

These devices use an electrical signal to induce a precise mechanical movement or vibration.

5. Actuators and Positioning:
   • Nanopositioning Stages: Used in high-precision equipment like Atomic Force Microscopes (AFM) and advanced optical systems to move components with nanometer (billionth of a meter) accuracy.
   • Inkjet Printers: Piezoelectric elements precisely control the expulsion of tiny ink droplets.
   • Micro-pumps and Valves: Used in medical and microfluidic applications for highly controlled liquid flow.
6. Transducers (Sound and Image):
   • Ultrasound Imaging: The transducer transmits high-frequency sound waves and then receives the echoes, forming medical images. This involves both converse (transmitting) and direct (receiving) effects.
   • Speakers and Buzzers: Convert electrical audio signals into mechanical vibrations to produce sound (e.g., alarms, small speakers).
7. Resonators and Filters:
   • Quartz Clocks/Watches: The highly stable and precise mechanical resonance of a quartz crystal, driven by an electric field, is used to generate a constant frequency signal for keeping time.
   • Electronic Filters: Used in radio frequency and communication circuits to select or reject specific frequencies based on the crystal’s mechanical resonance.
8. Haptic Feedback:
   • Smartphones and Touchscreens: Tiny, fast-acting piezoelectric elements generate localized vibrations to simulate the feeling of pressing a physical button.

What is a flyback transformer?

A flyback transformer (also known as a Line Output Transformer (LOT) or coupled inductor) is a special type of electrical transformer used primarily in flyback converters a simple and efficient type of switch-mode power supply (SMPS).

Unlike conventional transformers that transfer energy continuously, a flyback transformer is designed to store energy in its magnetic core during the “on” phase of a switching cycle and release that stored energy to the output load during the “off” phase.

How a Flyback Transformer Works

The operation is based on two distinct phases, controlled by an electronic switch (usually a MOSFET) on the primary side.

1. The Energy Storage Phase (Switch ON)

• The electronic switch closes, connecting the input voltage (often DC) to the primary winding of the transformer.
• Current flows through the primary winding, creating a strong magnetic field in the core.
• Because the secondary winding is connected in an opposing polarity (often with a diode in reverse bias), no current flows to the secondary side or the load.
• Energy is stored in the magnetic field of the core (specifically within a gapped core), much like an inductor.

2. The Energy Transfer Phase (Switch OFF / Flyback)

• The electronic switch opens, interrupting the primary current.
• The magnetic field rapidly collapses, which induces a high voltage of reversed polarity across the windings.
• This reversed voltage forward-biases the diode on the secondary side, allowing the stored energy to flow from the secondary winding to the output capacitor and the load.
• The name “flyback” originally came from its use in CRT monitors and TVs, where this high-voltage pulse was used to quickly “fly back” the electron beam to the start of the next line.

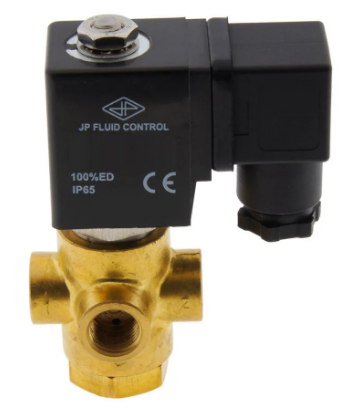

What is a Solenoid Valve?

A solenoid valve is an electromechanical device used to control the flow of liquid or gas in a system. It consists of two main parts:

1. The Valve Body: The physical component that contains the port connections and the internal mechanism (like a plunger or diaphragm) that physically opens or closes the flow path (orifice).
2. The Solenoid (Actuator): An electrical coil of wire wrapped around a core (the plunger or armature). When an electric current is applied to the coil, it generates an electromagnetic field. This magnetic field creates a force that pulls or pushes the plunger, causing the valve mechanism to switch positions—either opening or closing the flow path.

Solenoid valves are the most frequently used control elements in fluidics because they offer fast and safe switching, high reliability, and remote control capability.

Types of Solenoid Valves

Solenoid valves are primarily classified based on their operation principle (how the magnetic force controls the flow) and their circuit function (the number of ports and positions).

1. Direct-Acting: The solenoid plunger is directly connected to the seal and uses the magnetic force alone to open or close the orifice. Operates at zero pressure differential (from 0 bar). Fastest response time. Used for low flow rates and small orifice sizes (e.g., precise dosing, low-pressure pneumatic systems).
2. Pilot-Operated: The solenoid acts as a pilot valve to open a small orifice, using the system’s own fluid pressure (line pressure) to assist in operating a larger diaphragm or piston that controls the main flow path. Requires a minimum pressure differential to operate (typically ≥ 0.5 bar). Uses a smaller, lower-power solenoid to control high flow rates and large pressures. Slower response time.
3. Semi-Direct-Acting: A combination of both. The plunger is connected to the diaphragm/seal, allowing it to open the valve directly (like a direct-acting) but also using a pilot channel to harness fluid pressure assistance (like a pilot-operated). Can operate at zero pressure differential (0 bar) while still handling higher flow rates than pure direct-acting valves.

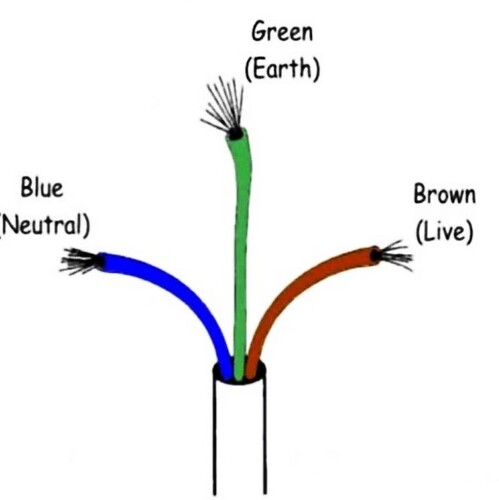

Does Neutral Wire give Electrical Shock or Not?

A neutral wire can give an electrical shock, but only under certain conditions. In a properly working electrical system, the neutral wire carries current back to the power source and is usually at or very close to zero volts. This makes it safer than the live (phase) wire but not completely safe. If the circuit is active and current is flowing, touching the neutral wire can shock you because your body may complete the return path for electricity. A neutral wire can also become dangerous if it is loose, broken, or incorrectly connected, causing it to carry voltage. Therefore, the neutral wire should always be treated with the same caution as a live wire.
